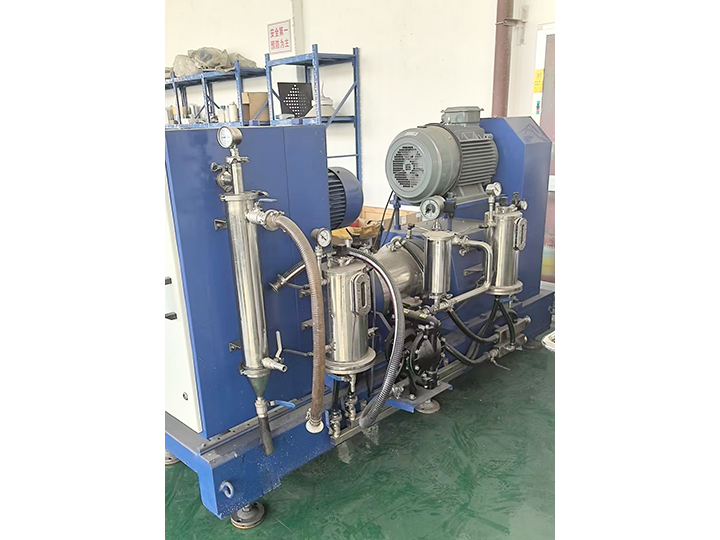

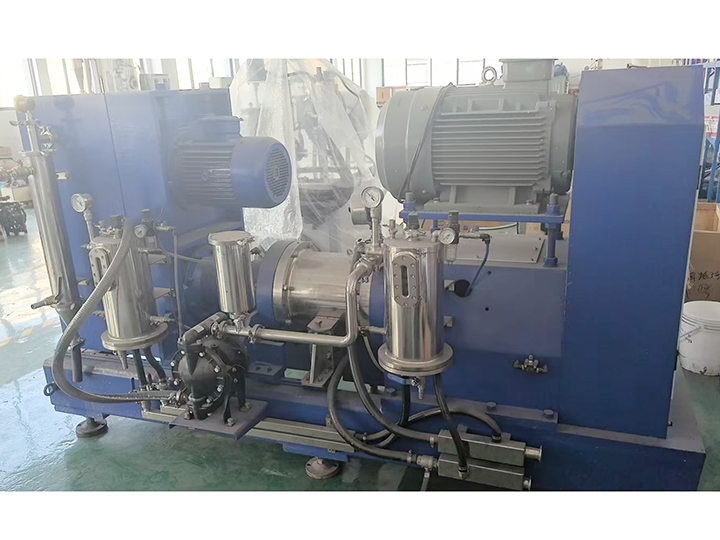

Dual Power Bead Mill for Nano Grinding Machine

Stable performance
Increase efficiency
Safe and reliable

Discharge particle size: ＜ 100nm
Solvent type: water-based, oil-based
Viscosity requirement: ＜ 3500CPS
Medium size: 0.03-1.0mm
Rotor rod pin structure: zirconia, silicon carbide ceramic, tungsten carbide, hard alloy, polyurethane, polymer, etc.
Grinding chamber structure: zirconia, silicon carbide ceramics, tungsten carbide, hard alloys, polyurethane, polymers, etc.

The centrifugal separation system can use 0.03mm grinding beads and is suitable for ultrafine grinding below 100nm.
The new separation structure design overcomes the problem of leaking grinding balls in centrifugal separation systems.
No sun screen separation system, never blocking the machine.
The rod pin grinding structure has high grinding efficiency and uniform particle size distribution without dead corners.
Sealing technology, safe and reliable, adding the same type of solvent to prevent material loss due to leakage, automatic temperature protection device, safe to use.
Multiple material options for internal structure to meet different material requirements.

Equipment model	Effective volume of grinding chamber	Grinding power kw/centrifugal separation motor power	Processing batch L	Medium size mm	Weight kg approximately	Dimensions mm
SMTC-1L		4	3-30	0.03-1.0	200	530-470-625
SMTC-2L	2	7.5/4	5-50	0.03-1.0	500	980-750-1550
SMTC-10L	10	22/7.5	30-200	0.03-1.0	1800	2200-1100-1500
SMTC-30L	30	45/11	60-500	0.03-1.0	2100	2300-1200-1700
SMTC-60L	60	75 90/18.5	150-1000	0.03-1.0	3600	2600-1400-1900
SMTC-150L	150	185/30	300-3000	0.03-1.0	7500	3200-1600-2100
