Trough Mixer Wet Dry Liquid Powder Blender Machine

A trough mixer is an industrial machine designed to mix powders, granules, and other materials in a semi-circular or U-shaped trough. Equipped with paddles or blades mounted on a rotating shaft, these mixers lift and distribute materials to achieve uniform blending. The design ensures high mixing efficiency and uniformity, making trough mixers ideal for applications requiring consistent results.

Trough mixer performance characteristics

1. The tank body is made of 304-2B4.0mm stainless steel plate, and the chassis shell is made of 304-2B1.5mm stainless steel plate;
2. The gap between the mixing blade and the tank is small, and there are no dead corners when mixing powder;
3. Sealing devices are installed on both sides of the mixing shaft to prevent material leakage;
4. The mixing efficiency is high, which is more than 25% higher than that of a general mixing machine. It can maintain the integrity of the material without causing pollution to the outside world;
5. Easy to operate, tilting the tank 180 degrees during discharge ensures complete discharge and easy cleaning.

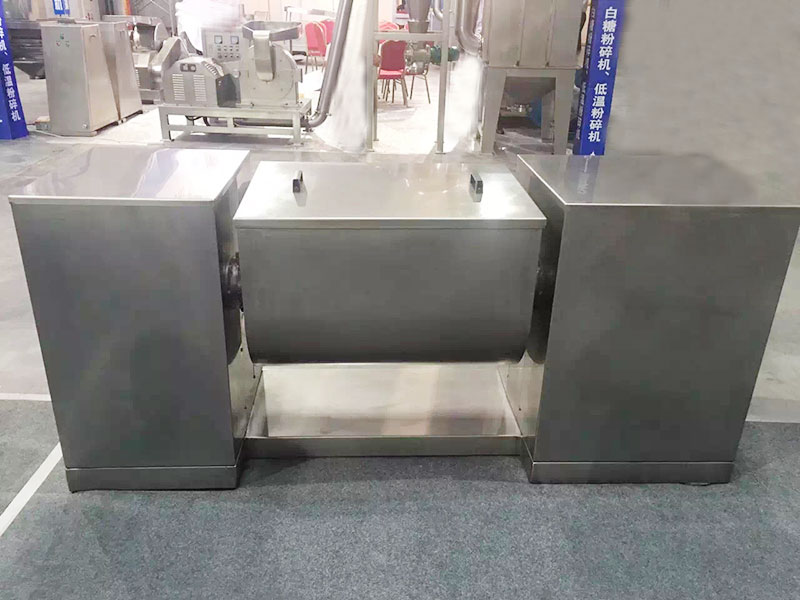

Slot type powder mixer - exhibition site

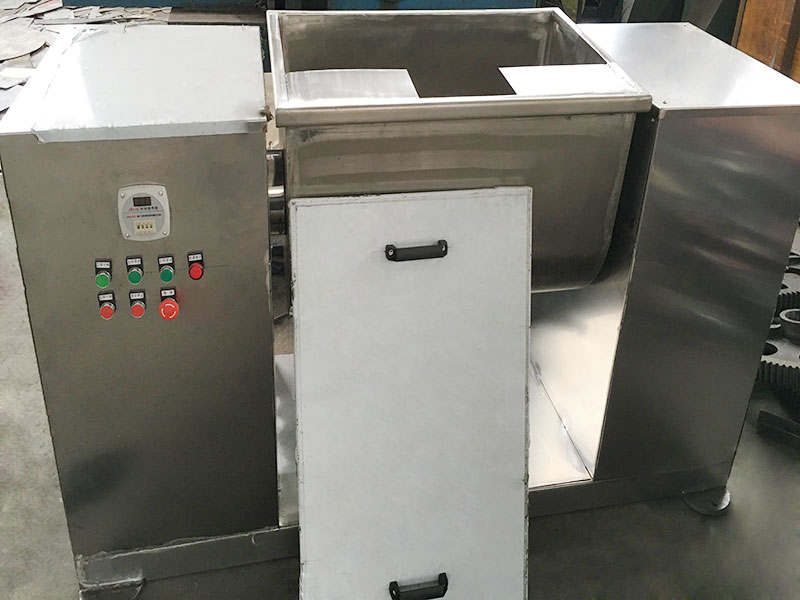

Trough type powder mixer

Horizontal trough mixer model and parameters

Model	50L	100L	200L	500L	1000L
Production capacity (kg/time)	25	50	100	250	500
Mixing speed（r/min）	24	24	15	24	24
Motor power (kw)	1.5	2.2	4	7.5	15
Feeding motor power (kw)	0.37	0.55	0.75	1.5	4
