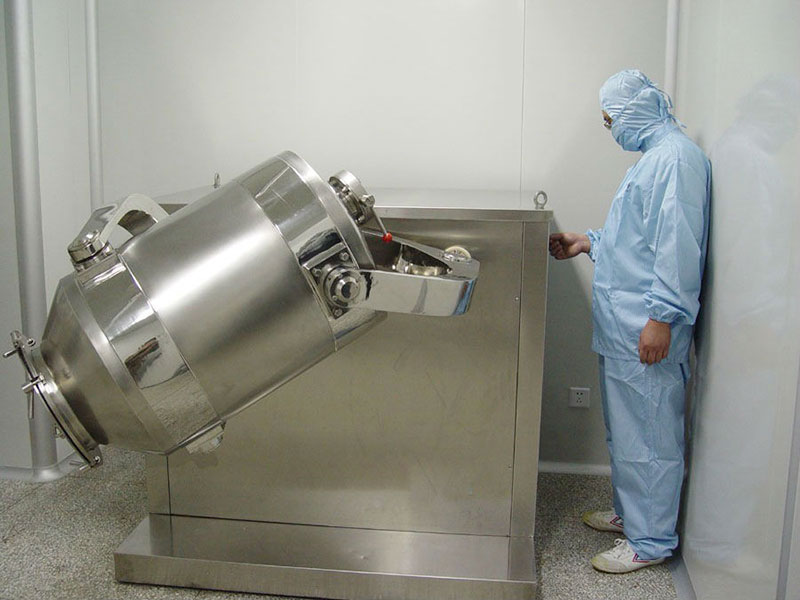

Three Dimension (3D) Mixer Powder Blender Machine

A 3D mixer, also known as a three-dimensional moving mixer, is a sophisticated device designed to mix materials in a three-dimensional space. Unlike traditional mixers that rely on simple rotational or linear movements, 3D mixers utilize multi-directional motions to achieve a more uniform and homogenous mix. This advanced technology eliminates issues such as gravity segregation, stratification, and aggregation, which are common in conventional mixing processes.

Send Inquiry +86 18051935350

3D powder mixer main purpose

This machine is suitable for high uniformity mixing of powdered and granular materials in pharmaceutical, chemical, food, light industry, electronics, mining and metallurgical industries, as well as various scientific research units.

3D powder mixer working principle

The machine consists of a base, a speed regulating motor, a shaft, a rotary connecting rod, and a cylinder. The cylinder of the material is driven by the active shaft to move horizontally and perform composite movements such as rock and roll, which promotes the material to move in three directions along the cylinder: circumferential, radial, and axial. This achieves the mutual flow, diffusion, and doping of various materials to achieve high uniformity mixing. This machine is a sterile, dust-free, and fully enclosed powder mixer.

3D mixer characteristic

There is no centrifugal force, specific gravity segregation, layering, or accumulation phenomenon during the mixing of materials. The 3D motion mixing machine utilizes unique three-dimensional motion, translational rotation, and rock principles to generate a strong alternating pulsating motion, continuously pushing the mixed materials. The vortex generated by it has a changing energy gradient, thus producing excellent mixing effects. The machine also has the advantages of smooth operation, low noise, high loading coefficient, and short mixing time. The machine consists of a base, transmission system, electrical control system, and multiple operating mechanisms. Short mixing time and high efficiency. The unique design of the mixing bucket of the 3D powder mixer has the advantages of fine polishing of the inner wall of the bucket, no dead corners, no pollution of materials, convenient discharge, easy cleaning, and simple operation.

Main technical parameters

Model	Bucket volume （L）	Large loading capacity （L）	Large loading capacity （kg/batch）	Spindle speed （r/min）	Dimensions (mm) Length×Width×Height	Whole machine weight （kg）
SBH-5	5	3	1.5	30-15	500×600×600	50
SBH-10	10	8	3.5	30-15	600×1000×1000	150
SBH-15	15	12	7.5	30-15	700×1000×700	200
SBH-50	50	40	25	0-8	1000×1400×1200	200
SBH-100	100	80	50	0-8	1200×1700×1500	500
SBH-200	200	160	100	0-8	1400×1800×1600	800
SBH-400	400	320	200	0-8	1800×2100×1950	1200
SBH-600	600	480	300	0-8	1900×2100×2250	1500
SBH-800	800	640	400	0-8	2200×2400×2300	2000
SBH-1000	1000	800	600	0-8	2250×2600×2600	2500
